Place of Origin:
Sichuan, China
Brand Name:
trairf
Certification:
CE,SGS
Contact Us
Product Description

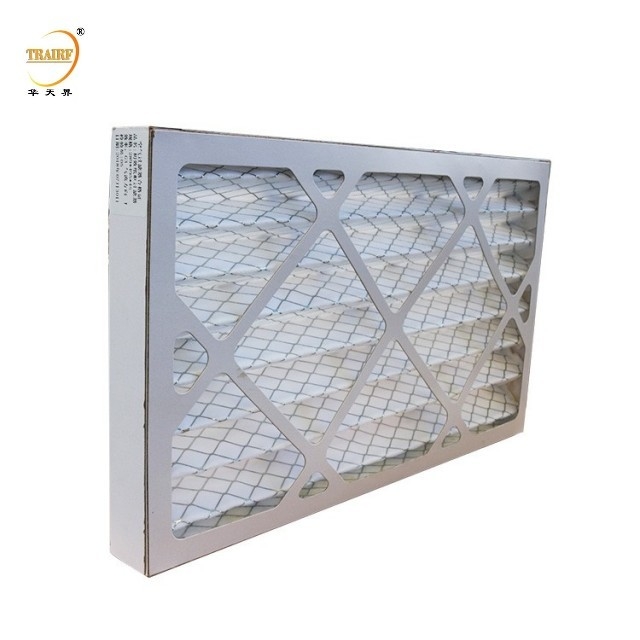

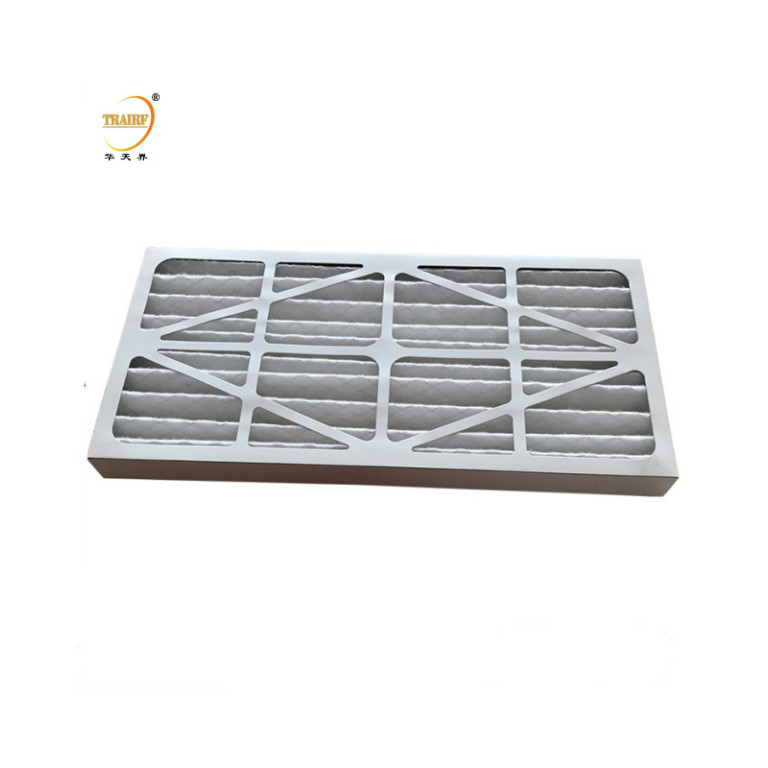

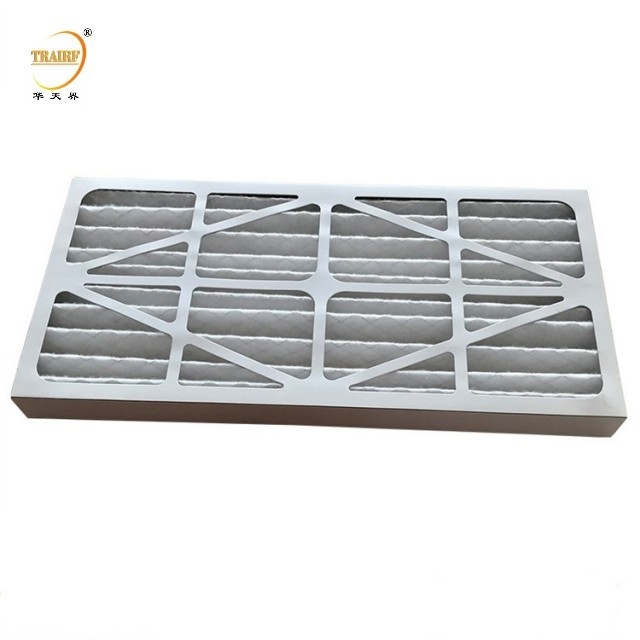

Paper air conditioning filters is mainly suitable for filtering particles with a diameter of 5μm. With domestic high quality non-woven fabric, glass fiber and synthetic fiber made of special blend or imported polyester fiber as filter material, wedge folding shape to increase the filtering area, with high strength cardboard frame, made of plate structure. It is especially suitable for air conditioning system,hvac system,ahu,ventilation system,home air filtration system , air conditioner with air purifier ,etc, widely applied to filtration of high quality surface painting with the feature of high arrestance, high efficiency in absorbing extra particle during the course of painting, making air pressure more equally.
Features
1. Frame: there are Moisture resistance cardboard; Aluminum alloy; Galvanized plate frame for your choice.
2. Welded wire mesh protect filter media not destroied during transportation or working .
3. Z-line pleated surface increased filtration area.
4. Low resistance, large dust holding capacity.
Product Parameters
| Model | Outside Dimensions(mm) | Rated air flow(m³/h) | Initial Resistance(Pa) | Efficiency(class) | Model of filter media | |
| TR-CX-P1 |
295×295×10/20mm 12”×12” ×1/2”/1” |
800m³/h | 25-50Pa |
80-95% weight |
G2 G3 G4 |
Nylon nets Early effect filter cotton Corrugated aluminium nets |
| TR-CX-P2 |
495×295×10/20mm 20”×12” ×1/2”/1” |
1300m³/h | ||||
| TR-CX-P3 |
495×495×10/20mm 20”×20” ×1/2”/1” |
2200m³/h | ||||
| TR-CX-P4 |
595×295×10/20mm 24”×12” ×1/2”/1” |
1600m³/h | ||||
| TR-CX-P5 |
595×495×10/20mm 24”×20” ×1/2”/1” |
2700m³/h | ||||
| TR-CX-P6 |
595×595×10/20mm 24”×24” ×1/2”/1” |
3200m³/h | ||||
*Customizable Size
