Galvanized Frame G4 Pre Filters Media Pocket Replacement Filter For Dust Collector

Galvanized Frame G4 Pre Filters Media Pocket Replacement Filter For Dust Collector

Galvanized Frame G4 Pre Filters

Dust Collector G4 Pre Filters

Place of Origin:

Sichuan, China

Brand Name:

trairf

Certification:

CE,SGS

Model Number:

592*592*381mm

Contact Us

Request A Quote
Product Details
Construction:
Bag Filter
Weight:
1 KG
Core Components:
Cotton
Condition:
New
Efficiency:
G4
Porosity:
3 Um
Frame Material:
Galvanized Frame
Color:
White
Pockets:
6 Pockets
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
USD 5.48-5.72 piece
Packaging Details
carton box
Delivery Time
5-12 work days
Payment Terms
D/A, D/P, L/C, T/T, Western Union, MoneyGram
Supply Ability
5000 pieces per 5-12 days
Product Description

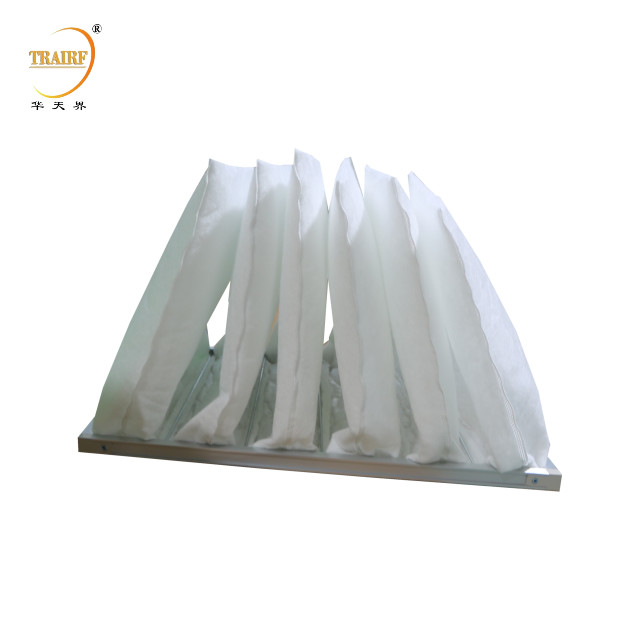

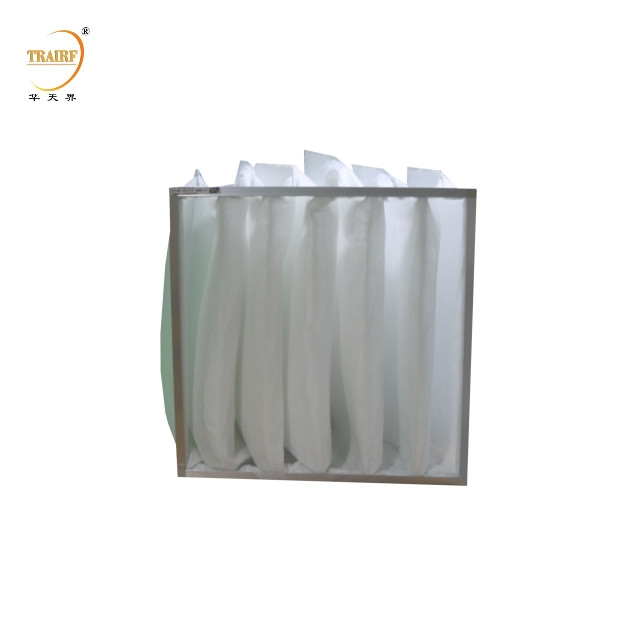

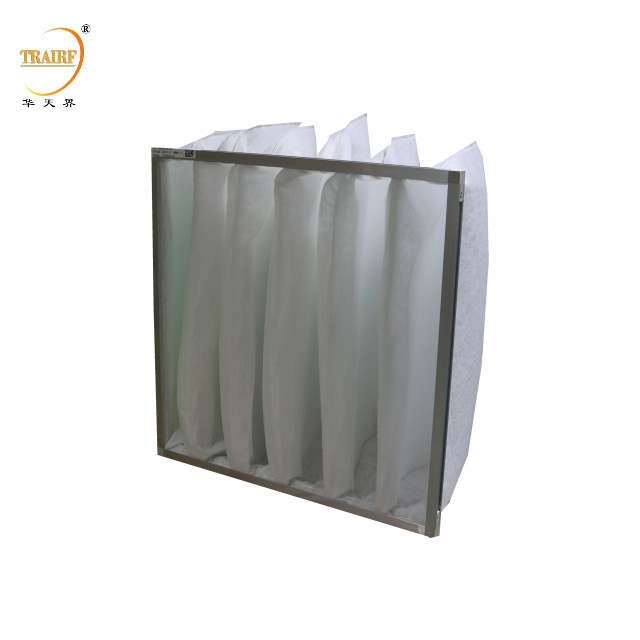

Galvanized Frame G4 Pre-Filters Media Pocket Replacement Filter for Dust Collector



TRAIRF® Pocket Filter Bag Filter is an extended surface air filter designed for most medium and high efficiency air filtration systems.
The pocket air filter media is composed of 4 layers designed to meet the various ASHRAE standards. The filter media are
manufactured of Multiple Layers Synthetic Microfiber. The Synthetic Microfiber build up in non-woven layers to ensure MultiLayer buildups and eliminate fiber shedding.
TRAIRF® Air Filter Bag are widely used in ventilation and air conditioner system of laboratory, pharmacy, microelectronic, hospital, food industry etc which areas requesting a higher degree of air cleanliness.

Galvanized Frame G4 Pre Filters Media Pocket Replacement Filter For Dust Collector 0Galvanized Frame G4 Pre Filters Media Pocket Replacement Filter For Dust Collector 1



Product parameters

Model Outside dimensions(mm) Rated air flow(m³/h) Initial resistance(Pa) Efficiency Model of filter media Pockets
TR-ZXD-P1 495*295*500mm
20"×12" ×20"
1000m³/h 50-130Pa
45% F5
65% F6
85% F7
95% F8
98% F9
colorimetric
F5
White
F6
Green
F7
Pink
F8
Yellow
F9
Yellow
5
TR-ZXD-P2 495*295*500mm
20"×12" ×20"
1800m³/h 5
TR-ZXD-P3 595*295*500mm
24"×12" ×20"
1300m³/h 6
TR-ZXD-P4 595*595*500mm
24"×24" ×20"
2200m³/h 6
TR-ZXD-P5 495*295*500mm
20"×12" ×24"
2600m³/h 8
TR-ZXD-P6 495*495*500mm
20"×20" ×24"
1200m³/h 5
TR-ZXD-P7 495*295*500mm
20"×12" ×24"
2200m³/h 5
TR-ZXD-P8 595*295*500mm
24"×12" ×24"
1600m³/h 6
TR-ZXD-P9 595*495*500mm
24"×20" ×24"
2700m³/h 6
TR-ZXD-P10 595*595*500mm
24"×24" ×24"
3200m³/h 8

* Customizable size



Application

1. Clean rooms (suitable for use in multilayer filter filtration system)

2. Food processing industry.

3. Pharmaceutical Processing.

4. Aerospace Engineering.

5. Genetic & Biological research.

6. Biohazard Atmosphere.

7. Laminar Flow Workstations.

8. Bio Safe Hoods (Biological Safety Cabinets).

9. Hospital Operating Theaters & Intensive care units.

10. Spray Booth and Paint Room.

11. Electronic Industry.

Galvanized Frame G4 Pre Filters Media Pocket Replacement Filter For Dust Collector 2
