Medium Efficiency Pocket Filter For Air Conditioner Or HVAC Filter

Medium Efficiency Pocket Filter For Air Conditioner Or HVAC Filter

F7 Air Conditioner Pocket Filter

3um HVAC Pocket Filter

Place of Origin:

Sichuan, China

Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
1 KG
Core Components:
Synthetic Fiber
3 Um
Frame Materials:
Galvanized Fiber
Payment & Shipping Terms
Minimum Order Quantity
1 piece
USD 6.35-7.21piece
Packaging Details
carton box
Delivery Time
5-12 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
5000 pieces per 5-12 days
Product Description

Medium Efficiency Pocket Filter for Air Conditioner or HVAC Filter

TRAIRF® Pocket Filter Bag Filter F7 is an extended surface air filter designed for most medium and high efficiency air filtration systems.
The pocket air filter media is composed of 4 layers designed to meet the various ASHRAE standards. The filter media are
manufactured of Multiple Layers Synthetic Microfiber. The Synthetic Microfiber build up in non-woven layers to ensure MultiLayer buildups and eliminate fiber shedding.
TRAIRF® Air Filter Bag are widely used in ventilation and air conditioner system of laboratory, pharmacy, microelectronic, hospital, food industry etc which areas requesting a higher degree of air cleanliness.

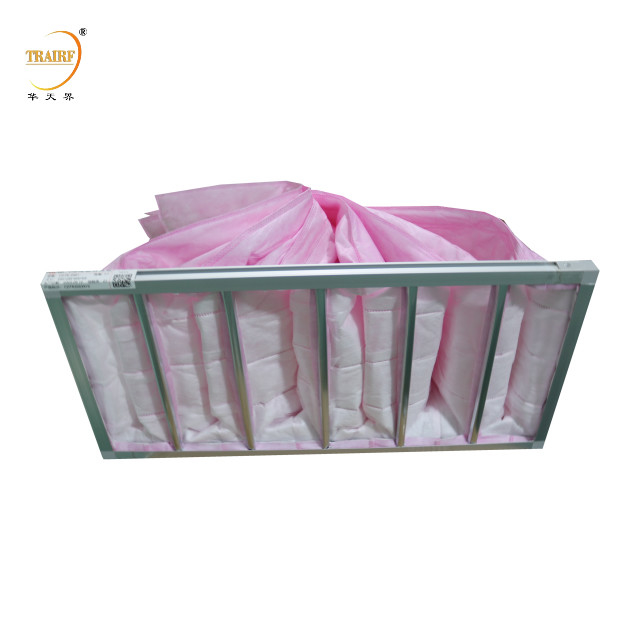

Medium Efficiency Pocket Filter For Air Conditioner Or HVAC Filter 0

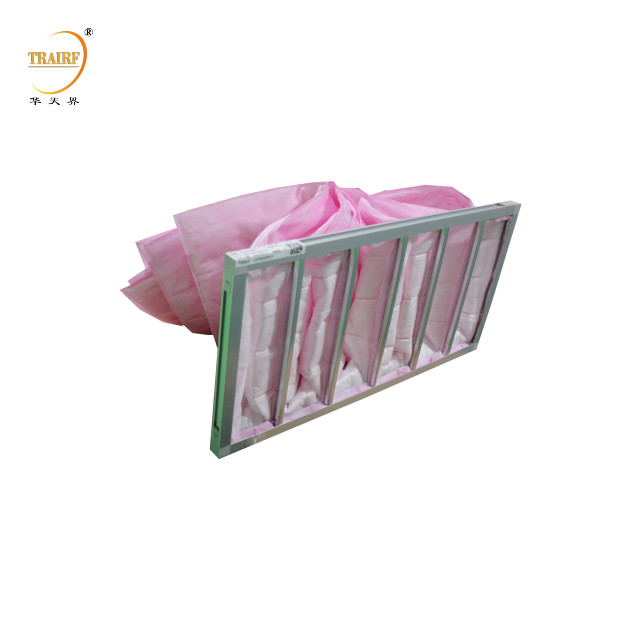

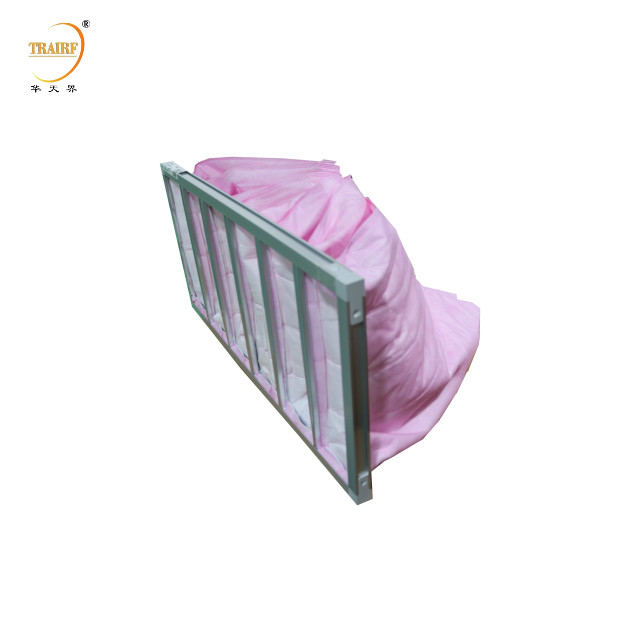

Medium Efficiency Pocket Filter For Air Conditioner Or HVAC Filter 1Medium Efficiency Pocket Filter For Air Conditioner Or HVAC Filter 2

Product parameters

Model Outside dimensions(m) Rated air flow(m³/h) Initial resistacne(Pa) Efficiency Model of filter media Pockets
TR--ZXD-P1 495*295*500mm
20"×12" ×20"
1000m³/h 50-130Pa
45% F5
65% F6
85% F7
95% F8
98% F9
TR--ZXD-P2 495*295*500mm
20"×12" ×20"
1800m³/h 5
TR--ZXD-P3 595*295*500mm
24"×12" ×20"
1300m³/h 6
TR--ZXD-P4 595*595*500mm
24"×24" ×20"
2200m³/h 6


20"×12" ×24"

2600m³/h 8
TR--ZXD-P6 495*495*500mm
20"×20" ×24"
1200m³/h 5
TR--ZXD-P7 495*295*500mm
20"×12" ×24"
2200m³/h 5
TR--ZXD-P8 595*295*500mm
24"×12" ×24"
1600m³/h 6
TR--ZXD-P9 595*495*500mm
24"×20" ×24"
2700m³/h 6
TR--ZXD-P10 595*595*500mm
24"×24" ×24"
3200m³/h 8

* Customizable size

1. Clean rooms (suitable for use in multi layer filter filtration system)
2. Food processing industry.
3. Pharmaceutical Processing.
4. Aerospace Engineering.
5. Genetic & Biological research.
6. Biohazard Atmosphere.
7. Laminar Flow Workstations.
8. Bio Safe Hoods (Biological Safety Cabinets).
9. Hospital Operating Theaters & Intensive care units.
10. Spray Booth and Paint Room.
11. Electronic Industry.

Medium Efficiency Pocket Filter For Air Conditioner Or HVAC Filter 3

Related products
Our Main products:
Filter cotton: Coarse filter cotton, Paint Fog Felt cotton, Booth Ceiling cotton;
Primary filter: Initial effect flat air filter,Primary folding air filter, Initial effect paper frame air filter, High temperature
resistant primary air filter , Activated carbon primary air filter;
Medium-efficiency air filter: Bag air filter, Green and white cotton air filter;
Hepa filter: Mini-Pleat filter, Deep-Pleat filter,W type high efficiency air filter, High temperature resistant efficiency air
filter, Gel-seal high efficiency air filter;
Air purify equipment: FFU, Efficient air supply outlet, Ultra-thin integrated air outlet ,Delivery window, Air shower.
Our products are widely used in Medical electronics, clean room, laboratory,HVAC System,Automobile manufacture,nuclear industry and other industries of air purification.
Medium Efficiency Pocket Filter For Air Conditioner Or HVAC Filter 4




Q: Are you a Trading Company or really a Manufacturer?

A: We are a manufacturer with two factories, one is main manufacture filter materials,media, elements, another is main manufacture all kinds of Air Filters.

Q: Why should we choose your as a trust quality supplier especially for the first deal?

A: Firstly: We can provide you qualified products as all our products are passed strictly quality inspection before sent out.

B:Secondly: Competitive Price provided as raw materials are provided by our own factory.

Q: Do you have any certification to ensure the quality?

A: ISO9001; CE Certification. Company has advance quality inspection equipment.

Q: What is the international standard for air filter?

A: Euro: Pre (G1---G4), Medium (F5----F9), HEPA (H10--H14), ULPA (U15--17)

B: American: Pre (Merv1---7), Medium ( Merve8----14), HEPA (Merv15---19), ULPA (Merv20)

Q: Can you send Free Sample?

A: Yes.We can offer you Free Samples and you just need to pay express charge. You also can provide your Express Account or asking your courier to pick up from our factory.

Q: What’s your MOQ ?

A: Different standard of MOQ for different goods.

Q: What’s your Delivery Way?

A: LCL, 20ft, 40GP, 40HQ, by sea or by air, by express delivery ,by train (Our Company Nearby QINGBAIJIANG International Railway Station which line can be arrival Middle Europe directly and only need to take half month )

Q: What’s your delivery date?

A: Normal delivery date is about 7-20 workdays after payment.

Q:What’s your payment terms?

A:Total amount <=2000USD, 100% T/T in advance. Total amount>=2000USD, 30% T/T in advance and 70% balance beforeshipment. If you have another question, please feel free to contact us.
