Place of Origin:
Sichuan, China
Brand Name:
trairf
Certification:
CE,SGS
Model Number:
490*490*500mm
Contact Us

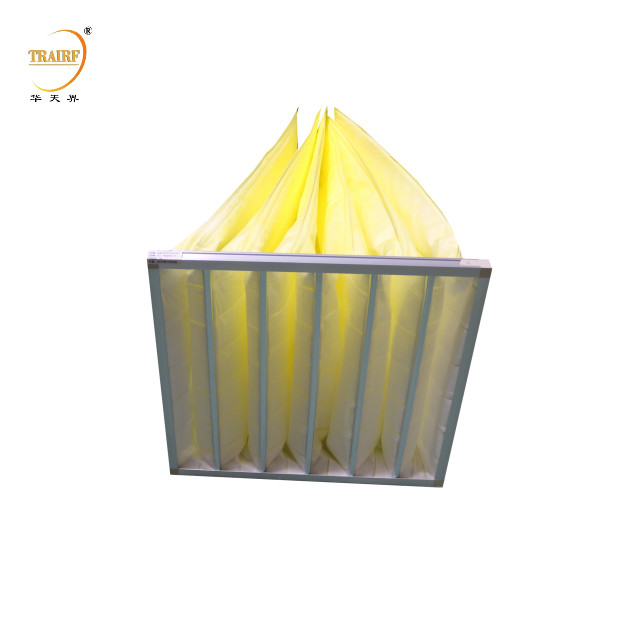

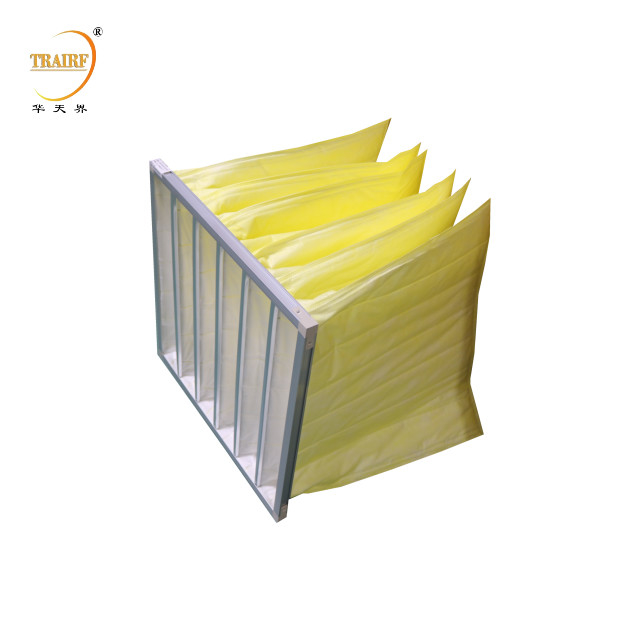

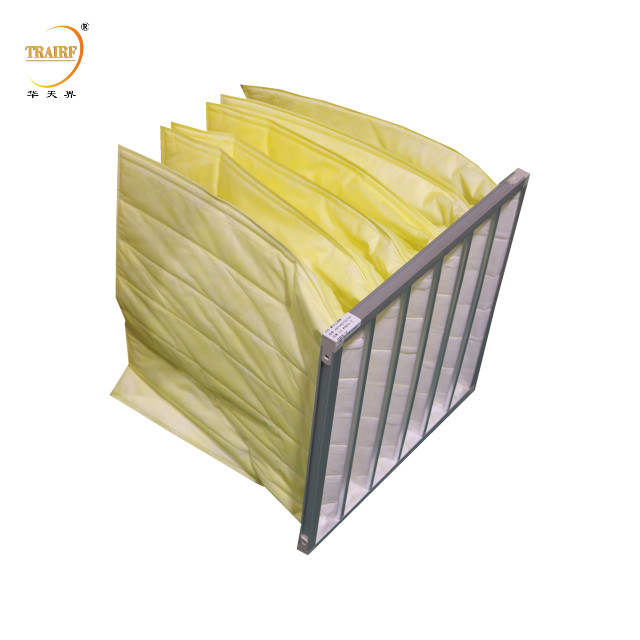

Non-Woven Pocket Fine Air Filter for Electronics Factory
Medium efficiency air filter is mainly used in central air conditioning and central air supply system. It can be used for the medium filtration of the air conditioning system to protect the next level of the system filter and the system itself. In the place where the requirements of air purification and cleanliness are not strict, the air treated by the medium effect air filter can be directly sent to the user.
Features
Size: 490*490*500mm
Pocket: 6 Pockets
External frame: Aluminum alloy frame
Filter media: New composite non-woven fabric
Color: yellow
Maximum service temperature: 80ºC
Maximum humidity:80%
Product parameters
| Model | Outside dimensions(mm) | Rated air flow(m³/h) | Initial resistance(Pa) | Efficiency | Model of filter media | Pockets |
| TR-ZXD-P1 | 495*295*500mm 20"×12" ×20" |
1000m³/h | 50-130Pa |
45% F5
65% F6
85% F7
95% F8
98% F9
colorimetric
|
F5
White
F6
Green
F7
Pink
F8
Yellow
F9
Yellow
|
5 |
| TR-ZXD-P2 | 495*295*500mm 20"×12" ×20" |
1800m³/h | 5 | |||
| TR-ZXD-P3 | 595*295*500mm 24"×12" ×20" |
1300m³/h | 6 | |||
| TR-ZXD-P4 | 595*595*500mm 24"×24" ×20" |
2200m³/h | 6 | |||
| TR-ZXD-P5 | 495*295*500mm 20"×12" ×24" |
2600m³/h | 8 | |||
| TR-ZXD-P6 | 495*495*500mm 20"×20" ×24" |
1200m³/h | 5 | |||
| TR-ZXD-P7 | 495*295*500mm 20"×12" ×24" |
2200m³/h | 5 | |||
| TR-ZXD-P8 | 595*295*500mm 24"×12" ×24" |
1600m³/h | 6 | |||
| TR-ZXD-P9 | 595*495*500mm 24"×20" ×24" |
2700m³/h | 6 | |||
| TR-ZXD-P10 | 595*595*500mm 24"×24" ×24" |
3200m³/h | 8 |
* Customizable size
Product Line
Package
Package: According to filter type, we are provide below package:
* Carton Package
* Wooden Case
* According to your requirement to packing air filter
Delivery Time:
* Sample Order:1-2 days after receive your payment
* Bulk Order:7-15 days in normal
Shipping Way:
* Shipping by Courier for samples or small quantity order or order which required urgently
* Shipping by Air
* Shipping by Sea for large quantity order or air shipping fee too high
* Shipping by Train for Europe Marketing
FAQ
1. who are we?
We are based in Sichuan, China, start from 2013,sell to Africa(15.00%),North America(10.00%),Southeast Asia(10.00%),Eastern Europe(10.00%),South America(10.00%),Mid East(8.00%),South Asia(5.00%),Southern Europe(5.00%),Northern Europe(5.00%),Central America(5.00%),Western Europe(5.00%),Domestic Market(5.00%),Oceania(5.00%),Eastern Asia(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
HEPA Filter,Pre Filter,Medium Pocket Filter,HVAC Air Filter,FFU Fan Filter Unit
4. why should you buy from us not from other suppliers?
1. Turth Factory Supply you with Factory Price 2. 7-10 days Short Delivery Time base on Strong Producing Strength 3.With more than 10 Year OEM Service Experience in Air Filter Field 4. Products Quality are Guaranteed with ISO9001 & CE Certificate
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,German,Arabic,French,Russian,Korean,Italian
Send your inquiry directly to us
