Place of Origin:
Sichuan, China
Brand Name:
trairf
Certification:
CE,SGS
Model Number:
297*297*381mm
Contact Us

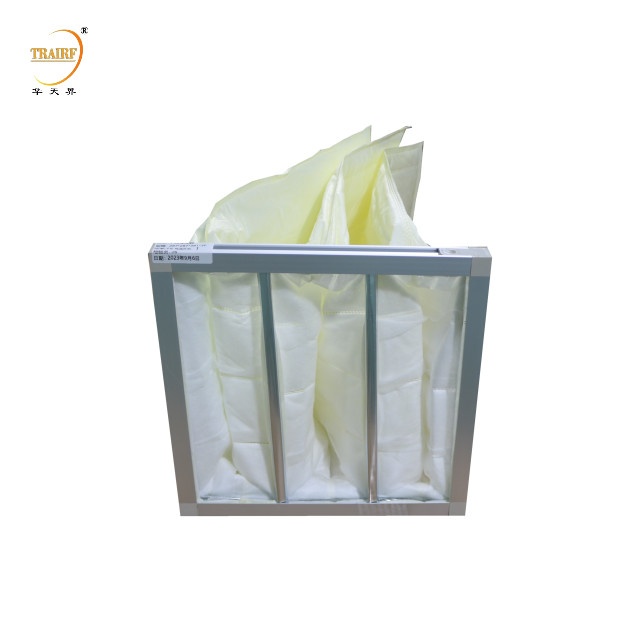

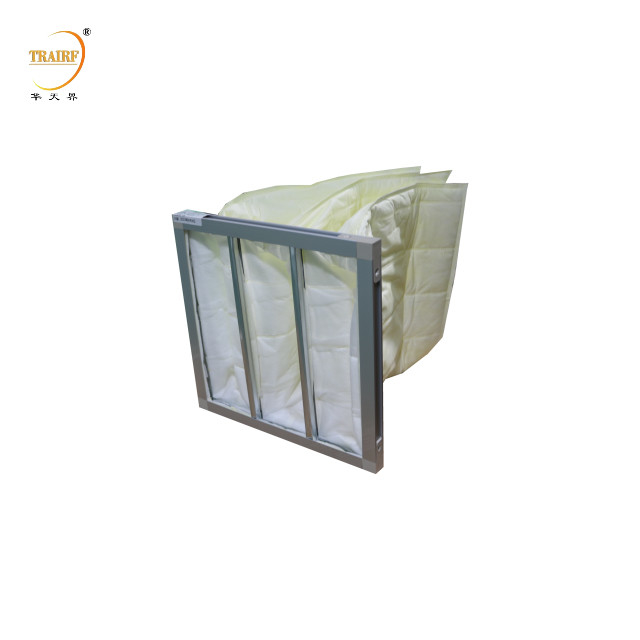

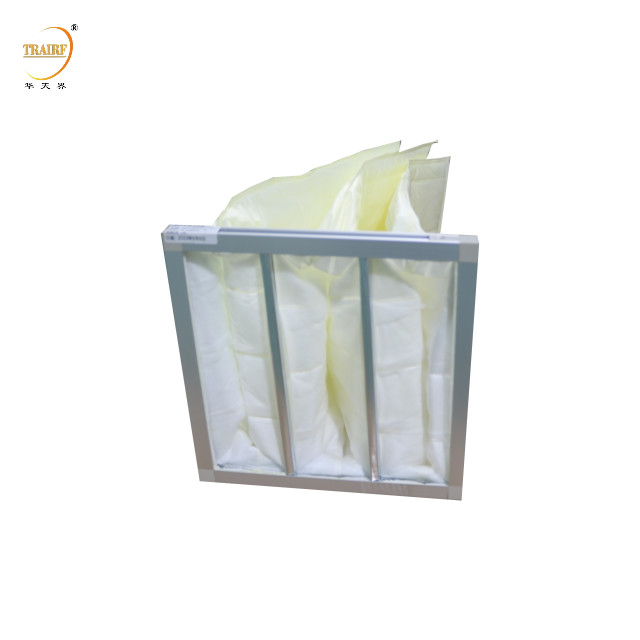

Industrial Media Pocket Filter Air Filter for Ahu Bag Filter
TRAIRF® Pocket Filter Bag Filter F8 is an extended surface air filter designed for most medium and high efficiency air filtration systems.
The pocket air filter media is composed of 4 layers designed to meet the various ASHRAE standards. The filter media are manufactured of Multiple Layers Synthetic Microfiber. The Synthetic Microfiber build up in non-woven layers to ensure MultiLayer buildups and eliminate fiber shedding.
TRAIRF® Air Filter Bag are widely used in ventilation and air conditioner system of laboratory, pharmacy, microelectronic, hospital, food industry etc which areas requesting a higher degree of air cleanliness.
Features
External frame: Aluminum alloy frame
Filter media: New composite non-woven fabric
Color: yellow
Maximum service temperature: 80ºC
Maximum humidity:80%
Bag Filter is designed to a V-Shape pocket with extended surface frame. V-Shape pocket design allows every pockets to fully inflate and maintain a proper spacing with adjacent pockets. Air can freely through from front to back .
| Product Details | 1.Style | Bag Filter,Pocket Filter,Medium Efficiency Air Filter |
| 2.Feature | Large dust collection,High quality,High efficiency, Long Service Life | |
| 3.Material | Non-woven fabric / Activated carbon | |
| 4.Size | OEM,Customization is available | |
| 5.Color | White,Orange,Green,Pink,Yellow | |
| 6.Frame | Galvanized,Aluminum alloy,Plastic box,Stainless steel | |
| 7.Is used to | Air Conditioner,Ventilation System ,Electronic,Biological pharmaceutical,Mechanical instrument,Petrochemical,light industry,Lab | |
| 8.Efficiency | 35%-95%,G3,G4,F5-F8 | |
| 9.Efficiency | Trapping 40-60%≥5.0µm particles,60-95%≥1.0µm particles | |
| 10.Packing | Cartons | |
| 11.Weight | Based on size&material,thickness | |
| Purchase information | 12.Minimum order | 50pcs |
| 13.Sample time | 3-5 working days | |
| 14.Lead time | 15-25 days after payment ,and based on the QTY | |
| 15.Payment | General take trade assurance,T/T,paypal,other payments also can be discussed | |
| 16.certificate | ISO9001 ,CE |
Product parameters
| Model | Outside dimensions(mm) | Rated air flow(m³/h) | Initial resistance(Pa) | Efficiency | Model of filter media | Pockets |
| TR-ZXD-P1 | 495*295*500mm 20"×12" ×20" |
1000m³/h | 50-130Pa |
45% F5
65% F6
85% F7
95% F8
98% F9
colorimetric
|
F5
White
F6
Green
F7
Pink
F8
Yellow
F9
Yellow
|
5 |
| TR-ZXD-P2 | 495*295*500mm 20"×12" ×20" |
1800m³/h | 5 | |||
| TR-ZXD-P3 | 595*295*500mm 24"×12" ×20" |
1300m³/h | 6 | |||
| TR-ZXD-P4 | 595*595*500mm 24"×24" ×20" |
2200m³/h | 6 | |||
| TR-ZXD-P5 | 495*295*500mm 20"×12" ×24" |
2600m³/h | 8 | |||
| TR-ZXD-P6 | 495*495*500mm 20"×20" ×24" |
1200m³/h | 5 | |||
| TR-ZXD-P7 | 495*295*500mm 20"×12" ×24" |
2200m³/h | 5 | |||
| TR-ZXD-P8 | 595*295*500mm 24"×12" ×24" |
1600m³/h | 6 | |||
| TR-ZXD-P9 | 595*495*500mm 24"×20" ×24" |
2700m³/h | 6 | |||
| TR-ZXD-P10 | 595*595*500mm 24"×24" ×24" |
3200m³/h | 8 |
* Customizable size
Product Line
Package
Package: According to filter type, we are provide below package:
* Carton Package
* Wooden Case
* According to your requirement to packing air filter
Delivery Time:
* Sample Order:1-2 days after receive your payment
* Bulk Order:7-15 days in normal
Shipping Way:
* Shipping by Courier for samples or small quantity order or order which required urgently
* Shipping by Air
* Shipping by Sea for large quantity order or air shipping fee too high
* Shipping by Train for Europe Marketing
