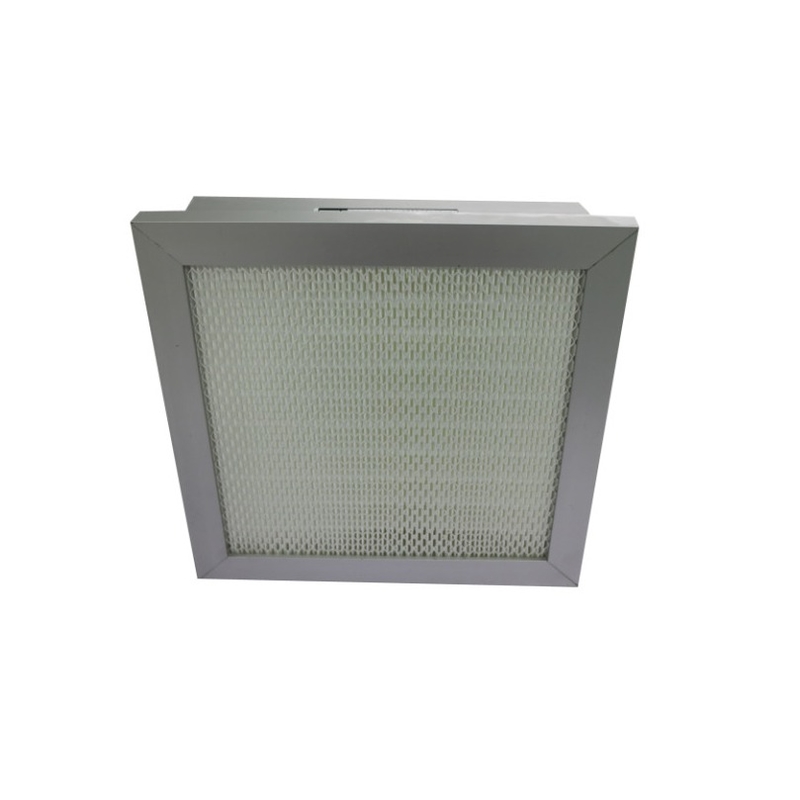

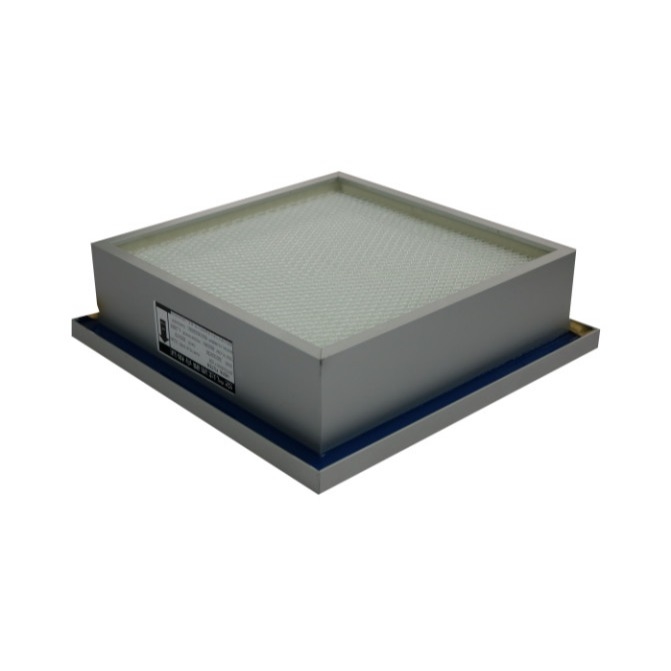

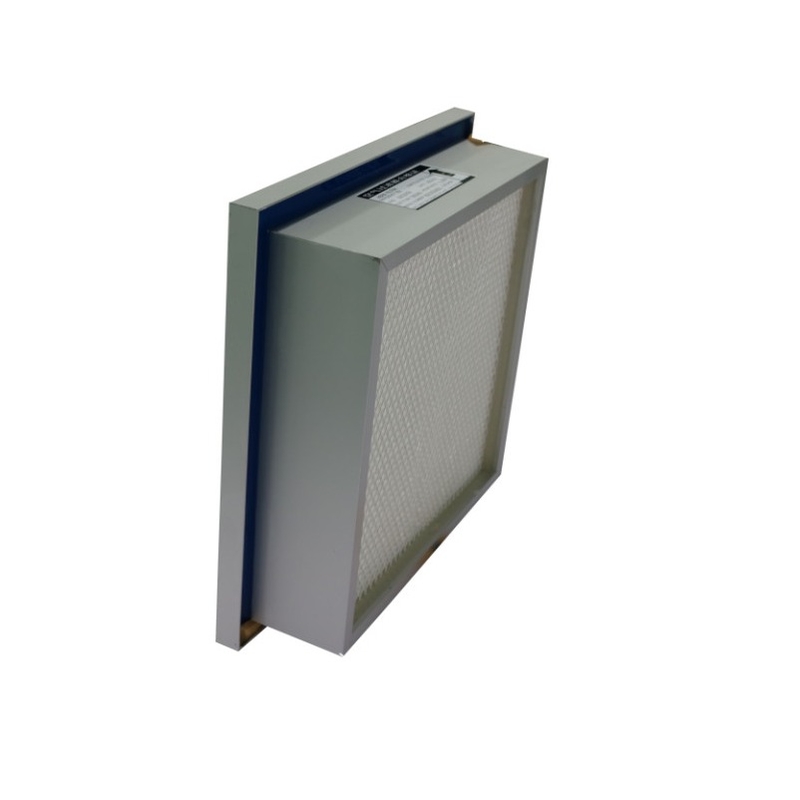

Liquid tank high efficiency air filter is an advanced filtration equipment, can effectively filter the harmful substances in the air, such as dust, bacteria, viruses and so on. It uses the liquid medium as the filter medium, through contact with the air, the harmful substances in the air adsorbed on the surface of the medium, so as to achieve the effect of efficient filtration. Liquid tank high efficiency air filter has many advantages.
Product Materials, features, specifications
External frame: Aluminum alloy frame, stainless steel, galvanized plate
Filter media: filter cotton,glass fiber, synthetic fiber, Polyester
Maximum temperature: 80℃
Maximum humidity: 80%
* Light weight for easy to install.
* High efficiency for H13,h14,is the finally filtration in clean room that use for filter the particles more than 0.3um
* Sealant around the media prevent the air filter is without any air leaking.
* HEPA filter with metal screens,prevent the media is without any damage.
* Large dust holding capacity ,the filter media adopts the ultra-thin glass fiber, the hot melt glue spacing each pleats inregular so that achieve high dust volume.
HEPA liquid tank gel seal air filter are main used for Clean room,building,food,automobile,residential,air purifying;ventilation system,air conditional system, furnace system etc
item |
value |
Applicable Industries |
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company |
Video outgoing-inspection |
Provided |
Machinery Test Report |
Provided |
Warranty of core components |
Not Available |
Condition |
New |
Efficiency |
99.999% |
Construction |
Panel Filter |
Porosity |
0.3u |
Place of Origin |
China |
Provinvce |
Sichuan |
Brand Name |
TRAIRF |
Dimension(L*W*H) |
450*450*93 |
Weight |
1KG |
Warranty |
Unavailable |
Frame |
Alluminum Alloy |
Material |
Fiber-glass |
Initial Pressure |
220Pa ,140Pa |
sealing strip |
EVA |
Maximum service temperature |
80℃ |
Maximum service humidity |
80% |
Sealant |
Polyamine glue |
Product Parameters
Model |
Outside dimensions(mm) |
Rated air flow(m³/h) |
Initial resistance(Pa) |
Efficiency(class) |
TR-YCGX-1 |
610×610×50 |
700 |
≤220 or ≤140(HV) |
≥99.99 |
TR-YCGX-2 |
915×610×50 |
1000 |
≤220 or ≤140(HV) |
≥99.99 |
TR-YCGX-3 |
1220×610×50 |
1400 |
≤220 or ≤140(HV) |
≥99.99 |
TR-YCGX-4 |
610×610×69 |
1000 |
≤220 or ≤140(HV) |
≥99.99 |
TR-YCGX-5 |
915×610×69 |
1500 |
≤220 or ≤140(HV) |
≥99.99 |
TR-YCGX-6 |
1220×610×69 |
2000 |
≤220 or ≤140(HV) |
≥99.99 |
TR-YCGX-7 |
610×610×80 |
1200 |
≤220 or ≤140(HV) |
≥99.99 |
TR-YCGX-8 |
610×610×90 |
1400 |
≤220 or ≤140(HV) |
≥99.99 |
TR-YCGX-9 |
610×610×100 |
1600 |
≤220 or ≤140(HV) |
≥99.99 |
TR-YCGX-10 |
1170×570×69 |
1800 |
≤220 or ≤140(HV) |
≥99.99 |
TR-YCGX-11 |
1170×570×80 |
2200 |
≤220 or ≤140(HV) |
≥99.99 |
TR-YCGX-12 |
1220×610×80 |
2500 |
≤220 or ≤140(HV) |
≥99.99 |
* Customizable Size
1.Per PCS Packaged with PE Bag, then in carton case
