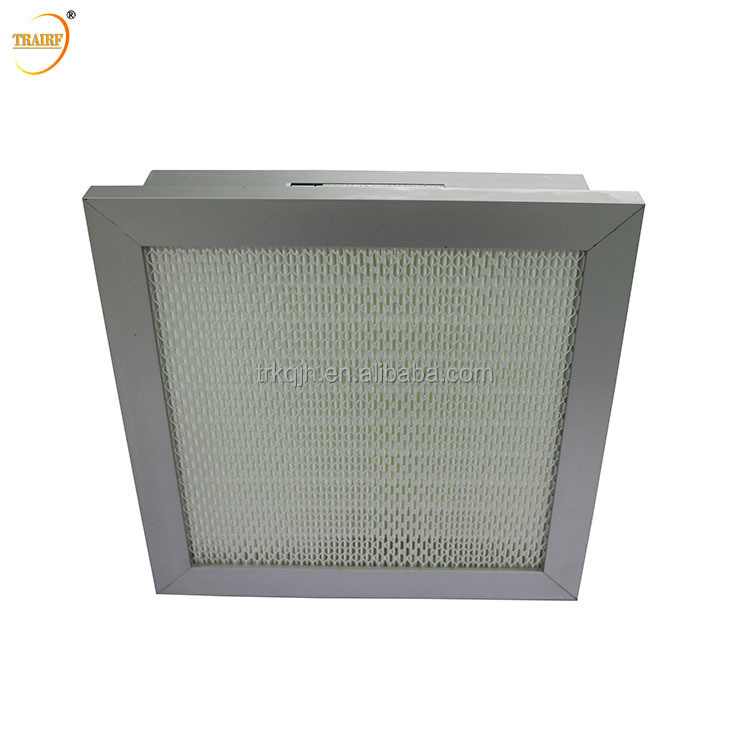

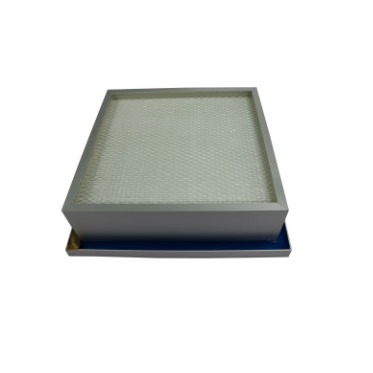

Class 100 Class 1000 Clean Room Hepa Filter H14 H13 Gel Seal HEPA Filter
Features:
1. Plait layer spacing equal to ensure good air flow, high capacity of dust;
2. Special mixture sealing, ensure sealing;
3. Import and export with plastic spraying guardrail filter, reduce the damage of filter paper;
4. Frame materials: aluminum frame. The surface wind with a certain length of blade;
5. Glass fiber filter paper manufacturing, hot melt adhesive, optional H13:99.97 99.99% @ 0.3 microns; H14:99.995 99.999% @ 0.3 microns;
6. Dividers: hot melt adhesive;
7. Sealant, polyurethane rubber;
8. Efficiency: 99.99% or greater (DEHS counting method);
9. Using high temperature 80 ℃;
10. Can customize according to customer request size.Liquid tank type high efficiency filter USES:Can be widely used in optical electron, LCD manufacturing, food hygiene, microorganism, precision instruments, drinks, food, PCB printing have tank sealing device of dust-free purification workshop at the end of filtration.
Parameter:
Model |
Dimensions(mm) |
Airflow(m³/h) |
Initial Resistance(Pa) |
Efficiency(%)(0.3um) |
Dust Capacity(g) |
TR-YCGX-1 |
610*610*50 |
700 |
≤220 or ≤140 HV |
≥ 99.99 |
450 |
TR-YCGX-2 |
915*610*50 |
1000 |
≤220 or ≤140 HV |
≥ 99.99 |
680 |
TR-YCGX-3 |
1220*610*50 |
1400 |
≤220 or ≤140 HV |
≥ 99.99 |
900 |
TR-YCGX-4 |
610*610*69 |
1000 |
≤220 or ≤140 HV |
≥ 99.99 |
560 |
Advantages:
1.Air inlet and outlet side both with protect mesh
2.Low resistance , Large airflow area , High air flow
3. Long service life
4. High Leakproofness ,leak repairing good
